PA50A High Volume Rotary Vane Pond Aeration System – 1/4 HP Kit with NO tubing
PA50A High Volume Rotary Vane Pond Aeration System – 1/4 HP Kit with NO tubing
$1,412.99

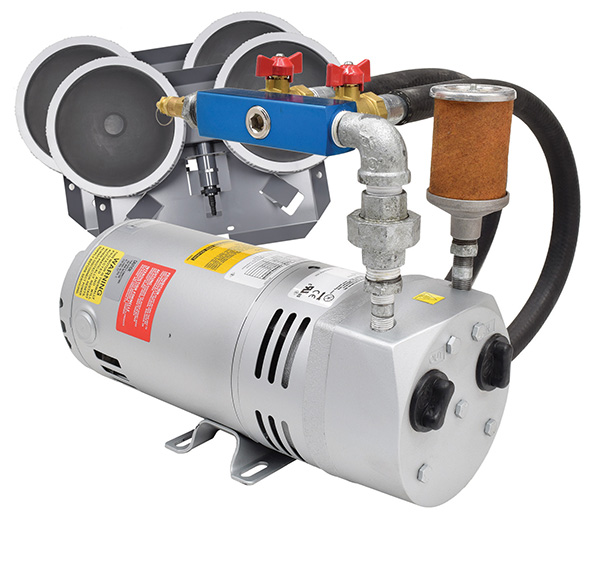

Aeration system for ponds up to two acres depending on shape and depth of pond. 1/4 hp Rotary Vane RV33 compressor, 4.5 cfm, 2.3 amps, aerates up to 18′ deep. The PA50A kit also includes two QS2 Quick Sink air diffusers, dual valved outlet assembly with pressure relief valve, fittings and clamps. Kit does not include tubing, making it an ideal solution where custom tubing lengths can be purchased as needed. Connections are set up for 1/2″ ID tubing.
PA50A features:
- 1/4 hp Stratus RV33 Rotary Vane compressor
- Two valve manifold with pressure relief
- Valved outlet with heat reducing hose and 1/2″ connections
- Two QS2 Quick Sink self weighted dual head air diffusers
- Kit does not include tubing, order 1/2″ tubing (weighted or unweighted) as needed
- Approximately 2.2 cfm of air flow per diffuser
- Typical operation cost of $1.31 per 24 hours at $0.09 per kWh, actual cost may vary
- PA50A requires weather protection for the compressor
Aeration Kit for Ponds up to 2 acres
1 Year Warranty on Compressor
5 Year Warranty on Diffusers
PA65D Sentinel Deluxe Aeration System – Complete PA65W System with Cabinet
Aeration Kits for up to 2 Acres
Complete Sentinel Deluxe Aeration System for ponds up to two acres depending on shape and depth of pond. 1/2 hp Rocking Piston SRC50 compressor, 4.5 cfm, 3.6 amps, aerates up to 50' deep. PA65D kit includes compressor, dual valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit also includes two QS2 Quick Sink air diffusers, 200' of 3/8" Quick Sink tubing and fittings for connections.
$2,221.19
PA34-2DP Sentinel Deluxe Aeration System – Complete PA34-2 system with Post Mounted Cabinet
Aeration Kits for up to 2 Acres
Sentinel Deluxe Aeration System for ponds up to two acres depending on shape and depth of pond. 1/4 hp Rocking Piston SRC25 compressor, 2.3?cfm, 1.7 amps, aerates up to 50' deep. The PA34-2DP kit includes compressor, dual valved outlet assembly, pressure gauge and pressure relief valve all mounted in SC18 Post Mount or Ground Mount lockable steel cabinet with cooling fan and electrical outlet installed. Now with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit also includes two QS1 Quick Sink air diffusers but does not include tubing; order 3/8" tubing (weighted or unweighted) as needed. PA34-2DP is ideal for aerating long, narrow ponds or two small ponds with one compressor.
$1,491.29
PA50W Rotary Vane Pond Aeration System- 1/4 HP Kit with Quick Sink Tubing
Aeration Kits for up to 2 Acres
Complete aeration system for ponds up to two acres depending on shape and depth of pond. 1/4 hp Rotary Vane RV33 compressor, 4.5 cfm, 2.3 amps, aerates up to 18' deep. The PA50W kit also includes two QS2 Quick Sink air diffusers, dual valved outlet assembly with pressure relief valve, 200' of 1/2" Quick Sink tubing, fittings and clamps.
$1,736.99
PA50D Sentinel Deluxe Aeration System – Complete PA50W system with cabinet
Aeration Kits for up to 2 Acres
Complete Sentinel Deluxe Aeration System for ponds up to two acres depending on shape and depth of pond. 1/4 hp Rotary Vane RV33 compressor, 4.5?cfm, 2.3 amps, aerates up to 18' deep. PA50D kit includes compressor, two valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit also includes two QS2 Quick Sink air diffusers, 200' of 1/2" Quick Sink tubing and fittings for connections.
$2,511.89
